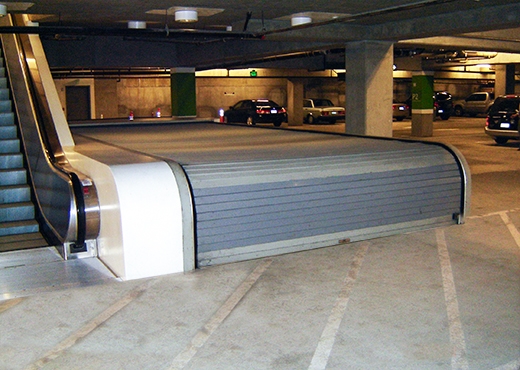

Horizontal Fire Shutter Door

The Horizontal Shutters is ideal for operable compartmentalization at void areas, escalators, travelators, truck dumping access, special purpose top or bottom void access and many more.In many instances, the Horizontal Shutters is used for fire protection and safety & security barrier during closing hours and also shade and weather protection for sky roof and void access. The Horizontal Shutters are also tested and recognized by local and overseas certifications for 1-hour, 2-hour and 4-hour fire-rated. ­The traveling path for the horizontal shutter can be as far as 50000 mm.
Architectural grade outdoor UV protected powder coat finishing.

‍

Features:

1-hour, 2-hour or 4-hour fire rated specifications.

­Straight or Escalator (Zig-Zag) Travel Path.

Single-span or double-span at varied lengths.

Motorized and non-motorized method of closure.

Standard or delay-timer type of closure. Delay timer refers to shutters begin closing after a pre-set time when fire signal is received.

­­Optional features include:

‍

• Fail-safe 24vdc E-S-400 electric release
• Extra upper limit safety switch
• Air pressure safety bottom sensor
• Wireless remote control
• Typhoon rated designs
• Guide silencer strips
